Video Interface Module Product Description
- Automatically switches to Rear-view when car is in Reverse mode.
- Plug and Play Installation.
- Aftermarket camera can be ordered separately (not included in kit)
| Car Fitment | Model | Year |
| Audi | A4, Q5, A5 | 2014-2016, 2013-2016, 2012-2015 |
| A5 | 2013-2016 |
| Q5 | 2012-2015 |

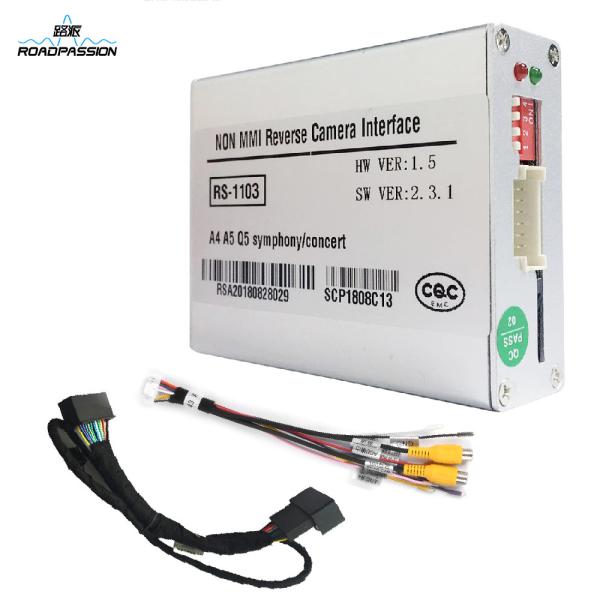

IPAS. Reverse Camera Interface with Dynamic Guidelines
1. Car Original System Update - Retrofit
2. Rear view with Guidelines -Moving along with Steering wheel
3. Front view input -OPTIONAL
4. LVDS output, support 400x240 screen 6.5 inch and 10-pin rectangular connector
5. Plug&Play cables and no harm to any other cable
| Item Title | Reverse Camera Interface with Dynamic Guidelines |
| Functions | integrate front and rear camera to car's factory screen, showing camera image to assist parking. |
| Video Format | CVBS |
| Camera Format | NTSC |
| Installation | plug and play, comes with connector and cable |
| Camera Angle | 170 degree |
| AV input | 1 AV input for front camera or rear camera |
| Parking Guidelines | parking guidelines in rear camera image |
| Warranty | 2 years |
| Suitable Vehicles | for Audi A4, Q5, A5 |
| Model | RS-1103 |
| Product | camera interface |
| Brand | Roadpassion |
| Plug and play | Yes |
| Included | Unit + Connector |
| Made for | For Audi A4, Q5, A5 |
| IR remote control | Yes |
| Video output | LDVS |
| Fuction | car original screen upgrade |
| Radar Sensors | Display |
Video Interface Module Parameters :
| BATT/ACC range | 7V – 25V |
| Stand.by power drain | <5mA |
| Power | 0.3A@12V |
| Power consumption | 2.4W |
| Video input | 0.7V˜1V |
| Video input formats | NTSC |
| AV-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Weight | 195g |
| Dimensions | 182 x 24 x 100 mm (B x H x T) |
